$1190.00 - 950.00 / Piece/Pieces
| 1 Piece/Pieces | (Mphindi. Dongosolo) | |
| Size: | ||
| Material: | ||
| pressure: | ||
| Option: | ||
| Malipiro: |
|
|
| Share: |
|
|
Mtundu: Cepai
Mitundu Ya: Mavuto a Globe
Kuthandizira Kusintha: Oem
Malo Oyambira: Mbale
Kutentha Kwapakati: Kutentha kwabwinobwino
Mphamvu: Mpweya
Kutuluka: Mpweya, Madzi, Mafuta
Sitilakichala: Kulamulira
| Quantity（Piece/Pieces） | 1 ~ 10 | >10 |
| Est. Time（days) | 20 | To be negotiated |
Mukamaliza kulipira lero, oda yanu idzatumizidwa tsiku lomaliza kubweretsa.
Makulidwe a zipatso za chibayo amagwiritsidwa ntchito kwambiri mu mankhwala, mafuta, ma metallingorgy, magetsi amagetsi ndi minda ina yamafakitale yamalamulo ndi mphamvu zamadzimadzi. Itha kukwaniritsa chowongolera chosinthika ndikuwonetsetsa kukhazikika ndi kudalirika kwa njirayi.
Mawonekedwe:
1. Kudalirika kwakukulu : valavu yovomerezeka yamimba imapangidwa ndi zida zapamwamba kwambiri, zimatsutsana bwino ndi kutentha kwambiri, ndipo zitha kugwira ntchito mokhazikika kwa nthawi yayitali.
Zogulitsa zazikuluzikulu zimaphatikizapo valavu yowongolera ya chibayo, valavu ya mpira, valavu yamagetsi, valavu yopendekera, yopatsa chidwi.
| Type | straight-through cage ball valve |
| Nominal diameter | DN15-400mm |
| Nominal pressure | PN16, 40, 64; ANSI150, 300, 600 |
| Connection form: | Flange type |
| Valve body material: | WCB, WC6, WC9, LCB, LC2, LC3, CF8, CF8M, etc. |
| Bonnet type: Standard type (P): | -17 - +230℃ |
| Gland type: | Bolt pressing type |
| Filling: | PTFE V-shaped packing, PTFE asbestos and flexible graphite |
Zipangizo za valavu
| Valve core form: | pressure balanced valve core |
| Adjustment characteristics: | equal percentage, linear, quick opening |
| Internal materials: | 304, 304 cladding STL, 316, 316 cladding STL, 316L, etc. |
| Bellows material: | 304L, 316L, Harbin C alloy, etc. |
| (1) Pneumatic actuator | |
| Model: | film type |
| Diaphragm material: | ethylene-propylene rubber sandwiched with nylon |
| Spring range: | 20-100KPa, 40-200KPa, 80-240KPa |
| Air supply pressure: | 140KPa, 160KPa, 280KPa, 400KPa |
| Air source connector: | Rc1/4, Rc3/8 |
| Ambient temperature: | -30 ~ +70℃ |
| Mode of action: | air-opening type (reaction), air-closing type (direct action) |
| Remarks: | |
| ① This model of large diameter or high pressure differential regulating valve can also be equipped with a straight stroke piston actuator. | |
| ② If the ambient temperature is lower than -30℃, please contact Xipai technical personnel. |
| Leakage amount: | Metal valve seat: Complies with ANSI B16.104 Level IV |
| Non-metallic valve seat: | conforms to ANSI B 16.104 Class VI |

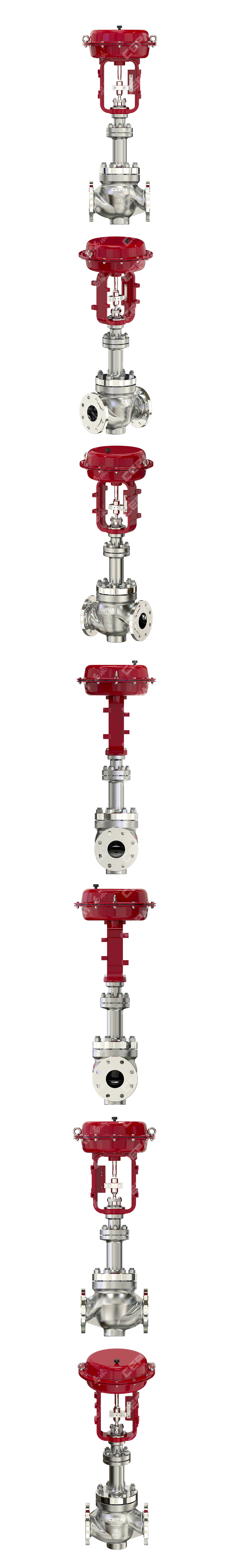

Zida Zamagulu : Valumic Control Valve
